AD BOARD - HDMI & DP

Monitor Panel Control Module

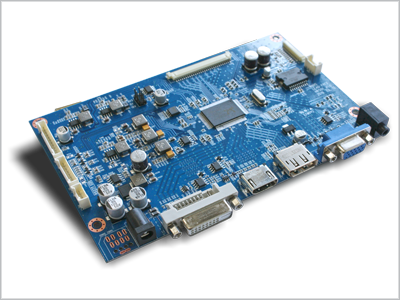

HR501
    LCD ModuleLVDS 1920X1080 60Hz 8bit
    InputAnalog RGB(R, G, B Separate H, V Sync), DVI, HDMI, DP
    Max Support Resolution1920X1080 (60Hz)
    OSD Control

    Menu, Select, Down, Up, Power

    (5 keys)

    Plug & PlayVESA DDC 2B Ver1.3
    Power Consumption

    Supply Voltage : 12Vdc

    Power : 10 Watt(Board Only)

    Signal Connector

    Analog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : DVI-D 24P(TMDS) / HDMI 2.0(TMDS), Display Port / Analog RGB

    Audio : 5W + 5W (8 Ω)

    Board SizeW x H x D(mm) : 165 x 100 x 18


    Download Files

      제품 상세보기

HN 102
    LCD ModuleLVDS 1920X1080 60Hz 8bit
    InputDisplay Port
    Resolution Support

    H: 31 ∼ 135kHz

    V: 55 ∼ 76Hz

    OSD Control

    Menu, Select, Down, Up, Power

    (5 keys)

    Plug & PlayVESA DDC 2B Ver1.4
    Power Consumption

    Supply Voltage : 12Vdc

    Power : 3.0 Watt(Board Only)

    Signal Connector

    Analog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : Display Port

    Audio : 3W x 3W

    Board SizeW x H x D(mm) : 110 x 80 x 15


    Download Files

HN 120
(HI-HDMI Follow-up Products)
    LCD ModuleLVDS 1920x1080
    InputAnalog RGB), HDMI(TMDS),DVI, AUDIO
    Resolution Support

    H: 31 ∼ 80kH

    V: 55 ∼ 76Hz

    OSD Control

    Input, Menu, Left, Right, Power

    (5 keys)

    Plug & PlayVESA DDC 2B Ver1.3
    Power Consumption

    Supply Voltage : 12Vdc

    Power : -(Board Only)

    Signal Connector

    Analog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : HDMI(TMDS)/HDCP Ver1.4/DVI

    Audio : 5W x 5W MAX

    Board SizeW x H x D(mm) : 140 x 74 x 8


    Download Files

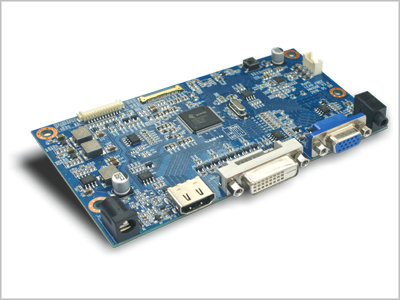

HN 100E
    LCD ModuleeDP 1920X1080 60Hz 8bit
    InputHDMI 1.4*1(TMDS), RGB Support, DVI

    Resolution Support

    H: 31 ∼ 135kHz

    V: 55 ∼ 76Hz

    OSD Control

    Menu, Select, Down, Up, Power

    (5 Keys)

    Plug & Play VESA DDC 2B Ver1.4
    Power ConsumptionSupply Voltage : 12Vdc

    Max Power : Board Only

    Signal ConnectorDigital : HDMI 1.4(TMDS),Display Port / HDCP Ver1.1

    Analog : DVI, (R, G, B Separate H, V Sync)

    Audio : 3W x 3W

    Board SizeW x H x D(mm) : 135 x 75 x 17


    Download Files

      제품 상세보기

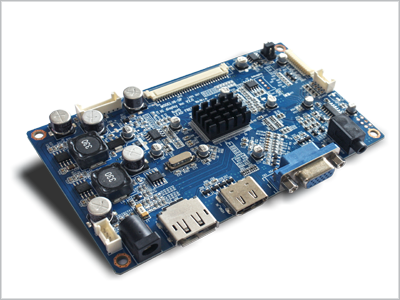

HI DP
    LCD ModuleLVDS 640x350 ~ MAX 1920X1200
    InputAnalog RGB(R, G, B Separate H, V Sync), HDMI, Display Port, AUDIO
    Resolution Support

    H: 31 ∼ 80kHz

    V: 55 ∼ 76Hz

    OSD ControlMenu, Select, Down, Up, Power (5keys)
    Plug & PlayVESA DDC 2B Ver1.3
    Power ConsumptionSupply Voltage : 12Vdc

    Max Power : TBD

    Signal ConnectorAnalog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : HDMI, DP

    Board SizeW x H x D(mm) : 130 x 74 x 15


    Download Files

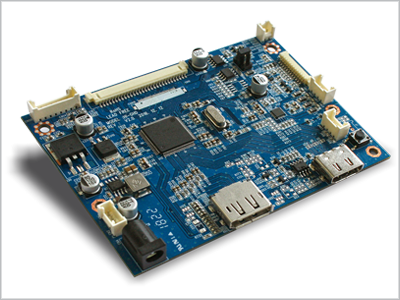

HI GHD
    LCD ModuleLVDS 1920X1080 60Hz 8bit
    InputHDMI 1.4X1(TMDS),Display Port
    Resolution Support

    H: 31 ∼ 135kHz

    V: 55 ∼ 76Hz

    OSD ControlMenu, Select, Down, Up, Power(5 keys)
    Plug & PlayVESA DDC 2B Ver1.4
    Power ConsumptionSupply Voltage : 12Vdc

    Power : 3.0 Watt (Board Only)

    Signal Connector

    Digital : HDMI 1.4(TMDS),Display Port / HDCP Ver1.1

    Audio : 3W x 3W
    Board SizeW x H x D(mm) : 110 x 80 x 5


    Download Files
