UHD

AD BOARD - UHD

Monitor Panel Control Module

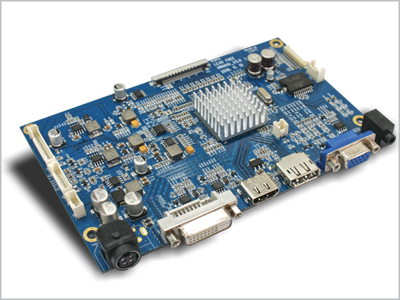

HR601U
    LCD ModuleV by one , eDP(8 lines & 4 lines) 3840x2160
    InputAnalog RGB(R, G, B Separate H, V Sync), DVI, HDMI, DP, AUDIO
    Max Support Resolution3840X2160 (60Hz)
    OSD Control

    Menu, Select, Down, Up, Power

    (5 keys)

    Plug & PlayVESA DDC 2B Ver1.3
    Power Consumption

    Supply Voltage : 12Vdc

    Power : 10 Watt(Board Only)

    Signal Connector

    Analog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : DVI-D 24P(TMDS) / HDMI 2.0(TMDS), Display Port / HDCP 1.4, 2.2

    Audio : 5W + 5W (8 Ω)

    Board SizeW x H x D(mm) : 165 x 100 x 18


    Download Files

    적용 PANELLC430DGE-FJM1, LC430EQE-FHA1, LC430EQE-FHP1, LC550EGY-SJM4, LC650EGE-FHM1, LC650EQD-FGF2, LC750EQN-FJA1, LC840EQD-SEM1, LC980DQD-FGM2, LD550AUD-GJP1, LD750EQD-FJM1, LD550EUE-FHB1, LD860EQD-FJP1, LD650EGE-FHM1, LD750DGN-FKH1, LD840EQD-SEM1, LD860EQD-FJM1, LD860EQD-FJP1, LG65"UHD, LG84", LSC430FN01, LTI700HA02, MV270QUM-N10, P430QVN01.0, P550QVN01.0, P650QVN01.0, P750QVN01_1, S580DJ2-KS5, T430QVN02 1, T850QVF02.1, V400DJ1-KS5


      제품 상세보기

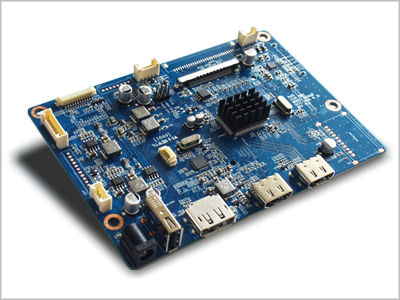

HI GM3458
    LCD ModuleLVDS 1920X1200 60Hz 8bit(OPTION)

    V by one 3840X2160 60Hz(OPTION)

    InputHDMI 2.0x2(TMDS), DP (HBR2), RF(OPTION)
    Resolution Support

    H: 31 ∼ 135kHz

    V: 55 ∼ 76Hz

    OSD ControlInput, Menu, Left, Right, Down, Up, Power

    (7 keys)

    Plug & PlayVESA DDC 2B Ver1.4
    Power ConsumptionSupply Voltage : 12Vdc

    Power : 16.7 Watt (UHD 60Hz dot active)

    Signal Connector

    Digital : HDMI 2.0(TMDS), DP(HBR2) / HDCP Ver1.4

    Audio : 3W X 3W

    RF(OPTION) : ATSC

    Board SizeW x H x D(mm) : 140 x 100 x 17


    Download Files

    적용 PANELLC430DGE-FJM1, LC430EQE-FHA1, LC430EQE-FHP1, LC550EGY-SJM4, LC650EGE-FHM1, LC650EQD-FGF2, LC750EQN-FJA1, LC840EQD-SEM1, LC980DQD-FGM2, LD550AUD-GJP1, LD750EQD-FJM1, LD550EUE-FHB1, LD860EQD-FJP1, LD650EGE-FHM1, LD750DGN-FKH1, LD840EQD-SEM1, LD860EQD-FJM1, LD860EQD-FJP1, LG65"UHD, LG84", LSC430FN01, LTI700HA02, MV270QUM-N10, P430QVN01.0, P550QVN01.0, P650QVN01.0, P750QVN01_1, S580DJ2-KS5, T430QVN02 1, T850QVF02.1, V400DJ1-KS5
HI UHD TV
    LCD Module

    LVDS 1920X1200 60Hz 8bit(OPTION)

    V by one 3840X2160 60Hz(OPTION)

    InputAnalog RGB(R, G, B Separate H, V Sync), HDMI 2.0x3(TMDS),HDMI 1.4x1(TMDS), CVBS(OPTION), COMPONENT(OPTION), DTV(OPTION),USB, AUDIO
    Resolution Support

    H: 31 ∼ 135kH

    V: 55 ∼ 76Hz

    OSD ControlInput, Menu, Left, Right, Down, Up, Power

    (7 keys)

    Plug & PlayVESA DDC 2B Ver1.4
    Power ConsumptionSupply Voltage : 12Vdc, 5Vdc

    Power : 2.0 Watt (Board Only)

    Signal ConnectorAnalog : DSUB 15P(R, G, B Separate H, V Sync)

    Video(OPTION), : RCA(CVBS)

    Component(OPTION), : Y,Pb,Pr

    Digital : HDMI 2.0(TMDS) / HDCP Ver1.4

    Audio : 5W x 5W, 15W X 15W(OPT)

    RF(OPTION) : ATSC

    Board SizeW x H x D(mm) : 220 X 110 X 16


    Download Files

    적용 PANELLC430DGE-FJM1, LC430EQE-FHA1, LC430EQE-FHP1, LC550EGY-SJM4, LC650EGE-FHM1, LC650EQD-FGF2, LC750EQN-FJA1, LC840EQD-SEM1, LC980DQD-FGM2, LD550AUD-GJP1, LD750EQD-FJM1, LD550EUE-FHB1, LD860EQD-FJP1, LD650EGE-FHM1, LD750DGN-FKH1, LD840EQD-SEM1, LD860EQD-FJM1, LD860EQD-FJP1, LG65"UHD, LG84", LSC430FN01, LTI700HA02, MV270QUM-N10, P430QVN01.0, P550QVN01.0, P650QVN01.0, P750QVN01_1, S580DJ2-KS5, T430QVN02 1, T850QVF02.1, V400DJ1-KS5

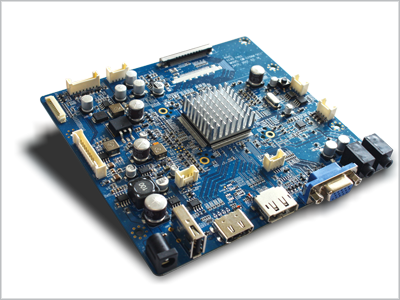

GM LEONA
    LCD Module3840X2160 10bit, V By One, eDP HBR2(Option)
    InputHDMI 2.0x1(TMDS), Display Port, D-SUB
    Resolution Support

    H: 31 ∼ 135kH

    V: 55 ∼ 76Hz

    OSD ControlInput, Menu, Left , Right, Down, Up, Power

    (7 keys)

    Plug & PlayVESA DDC 2B Ver1.4
    Power ConsumptionSupply Voltage : 12Vdc

    Power : 3.0 Watt (Board Only)

    Signal ConnectorDigital : HDMI 2.0(TMDS),Display Port / HDCP Ver1.4

    Audio : 3W x 3W

    Board SizeW x H x D(mm) : 140 x 130 x 17


    Download Files

    적용 PANELM315DVR01.1

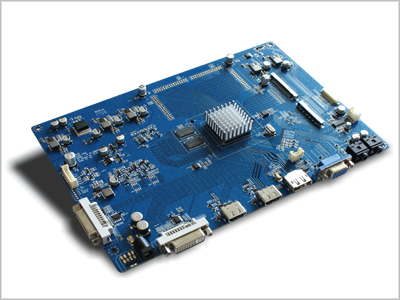

HI 4K MONITOR
    LCD ModuleV BY ONE , eDP(8 lines & 4 lines), LVDSx4 3840x2160
    InputAnalog RGB(R, G, B Separate H, V Sync),

    Dual and single DVI, HDMIx2, DP,AUDIO

    Max Resolution Support4096X2160 (60Hz)
    OSD ControlMenu, Select, Down, Up, Power (5 keys)
    Plug & PlayVESA DDC 2B Ver1.3
    Power ConsumptionSupply Voltage : 18Vdc

    Power : 10 Watt

    Signal ConnectorAnalog : DSUB 15P(R, G, B Separate H, V Sync)

    Digital : DVI-D 24P(TMDS) / HDCP Ver1.4

    Audio : 2.5W + 2.5W (5 Ω)

    Board SizeW x H x D(mm) : 240 x 160 x 17


    Download Files

    적용 PANELLC550EQD-FGF2, LM238WR2-SPA1, LQ156D1JX01, MV238QUM-N20, MV270QUM-N10, S400DJ1-KS5
