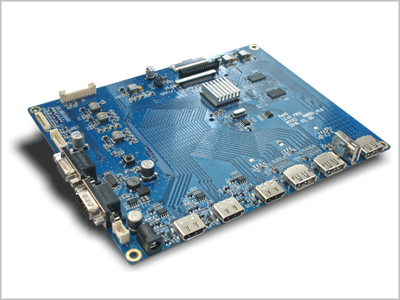

Monitor Panel Control Module


	LCD Module	LVDS Quard , V by one - 3840x2160
	Input	HDMIx3, DPx2, OUTPUT DPx1,RS232
	Resolution Support	H: 31 ∼ 80kHz V: 55 ∼ 76Hz
	OSD Control	POWER,CH+,CH-,VOL+,VOL-,MENU,INPUT (7 keys)
	Plug & Play	VESA DDC 2B Ver1.3
	Power Consumption	Supply Voltage : 12Vdc Power : - (Board Only)
	Signal Connector	HDMI : HDMI 1.4a / HDMI 2.0 / HDCP V1.4 DP : DisplayPort V1.2 Audio : 3W + 3W
	Board Size	W x H x D(mm) : 200 x 155 x 15
	Support	PIP Window up to 1920x1080 Flip / Mirror Display
