AD BOARD - MEDIAMonitor Panel Control Module

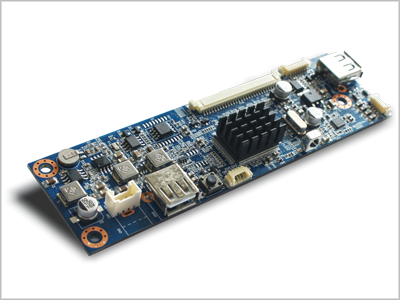

HI MEDIA
 |
LCD Module | LVDS 1024X768 | |||
|---|---|---|---|---|---|
| Input | USB, AUDIO | ||||
| Resolution Support | H: 31 ∼ 80kHz V: 55 ∼ 76Hz | ||||
| Plug & Play | VESA DDC 2B Ver1.4 | ||||
| Power Consumption | Supply Voltage : 12Vdc Power : 1.6 Watt | ||||
| Board Size | W x H x D(mm) : 137 x 40 x 12 | ||||
Download Files |
 |
 |
 |
||

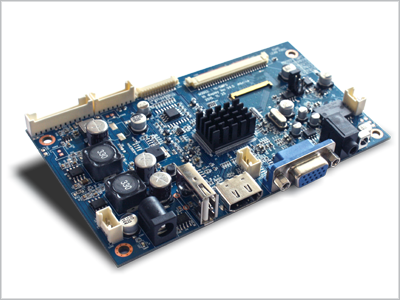

HI DMPS
 |
LCD Module | LVDS 1920x1080 | |||
|---|---|---|---|---|---|
| Input | Analog RGB(R, G, B Separate H, V Sync),HDMI, USB, AUDIO | ||||
| Resolution Support | H: 31 ∼ 80kHz V: 55 ∼ 76Hz | ||||
| OSD Control | Input, Menu, Left, Right, Down, Up, Power (7 keys) | ||||
| Plug & Play | VESA DDC 2B Ver1.3 | ||||
| Power Consumption | Supply Voltage : 12Vdc Power : 2.5 Watt | ||||
| Signal Connector | Analog : DSUB 15P(R, G, B Separate H, V Sync) Digital : HDMI(TMDS) / HDCP Ver1.2 Audio : 5W + 5W | ||||
| Board Size | W x H x D(mm) : 130 x 79 x 17 | ||||
Download Files |
|
|
|
||
