LED DRIVER
LED DRIVERLED Backlight Inverter Control Module

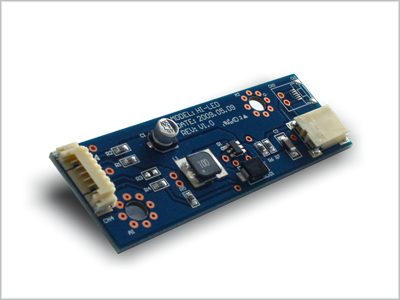

HI LED S
 |
적용 PANEL | BA104S01-100, CLAA104XA02CW, G070VTN01 V0 | |||
|---|---|---|---|---|---|
Download Files |
 |
||||

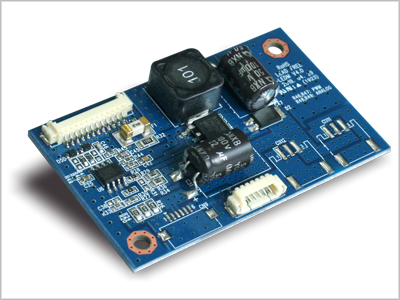

HI LED M
 |
|||||
| MAIN IC | BITEK / BIT 3251 | ||||
|---|---|---|---|---|---|
| Maximum using watt | 15W | ||||
| Standby Power | Less then 0.12W (DC12V) | ||||
| Advantage | Up to 92% Efficiency, Soft-Start, PWM Dimming | ||||
| Board Size | W x H x D(mm) : 65 X 40 X 10 | ||||
Download Files |
|
 |
 |
적용 PANEL | HR230WU1-400, LB190E02-SL01, LM190E0A-SLA1, LM190E0A-SLD1, LM190E0C-SLA1, LM195WF1-SPA1, LM200WD3-TLF1, LM215WF3-SLK1, LM215WF3-SLN1, LM215WF3-SLS1, LM215WF9-SLA1, LM215WF-SLK1, LM220WE5-TLCI, LM230WF3-SLL1, LM230WF3-SLP7, LM230WF3-SLP8, LM230WF9-SLA1, LM238WF1-SLK1, LM270WF5-SLM4, LTM200KT12, LTM215HL01, LTM220KT12, LTM220MT09, M170ETN01.1, M185XTN01 V2, M190ETN01, M190ETN01.0, M190PW01 V8, M195RTN01.0, M215HGE-L21, MV190E0M-N10, T195XVN01.0, T215HVN01, T215HVN01 V0, T215HVN01 V1, T215HVN01.1 |

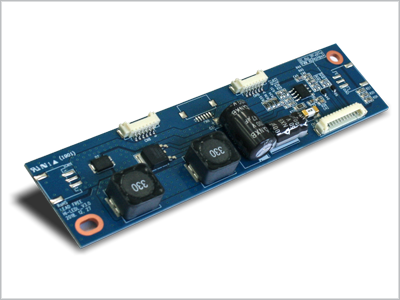

HI LED L
 |
|||||
| MAIN IC | BITEK / BIT 3251 | ||||
|---|---|---|---|---|---|
| Maximum using watt | 40W | ||||
| Standby Power | Less then 0.072W (DC12V) | ||||
| Advantage | Up to 92% Efficiency, Soft-Start, PWM Dimming | ||||
| Board Size | W x H x D(mm) : 120 X 30 X 12 | ||||
Download Files |
|
|
|
적용 PANEL | G230HAN01.1, HR215WU1-210, HR230WU1-400, LM190E0A-SLD1, LM200WD3-TLC7, LM200WD3-TLC9, LM215WF3-SLC1, LM230WF3-SLK1, LM230WF3-SLP7, LM240WU8-SLA2, LM240WU8-SLD1, LM240WU8-SLD2, LM24WU8-SLE2, LM270WF5-SLM4, LM270WF5-SSC1, LTM230HL08, M170ETN01, M195RTN01.0, M238HAN01.0, M238HVN01, M238HVN01.0, M240HTN01.1, M240HTN01.2, M240HVN02.1, M240UAN01.0, M270HTN01.1, M270HVN02, M270HVN02 V1, M270HVN02.1, M270QAN01.0, MV190E0M-N10, MV240WUM-N10, MV270FHM-20, MV270FHM-N20, P270HVN01.0, P280HVN02, SL2220MA-L1A, STI22", T215HVN01 V1, T215HVN01.1 |
