BOE DISPLAY

Panel Specifications

Panel Model	DV190FBM-NB0
Brand	BOE

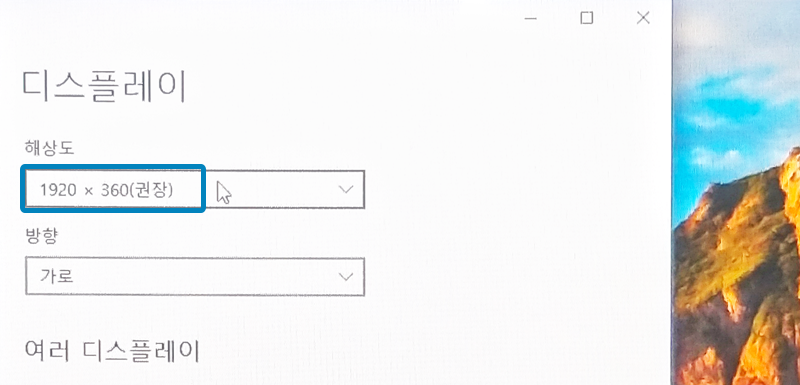

Resolution(H X V)	1920(H) X 360(V) pixels

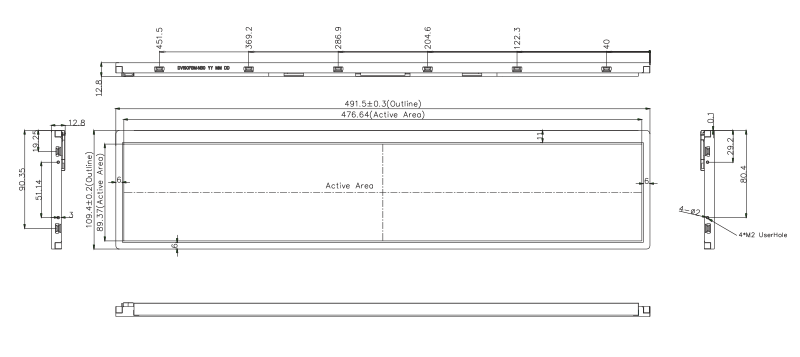

Active area(H X V) / Inch	476.64(H) × 89.37(V) mm / 19"
Interface	LVDS
Luminance	300 Cd/㎡
Display colors	16.7 M
Surface Treatment	Haze 25%
Back-light	Up edge side, 1- LED Light bar

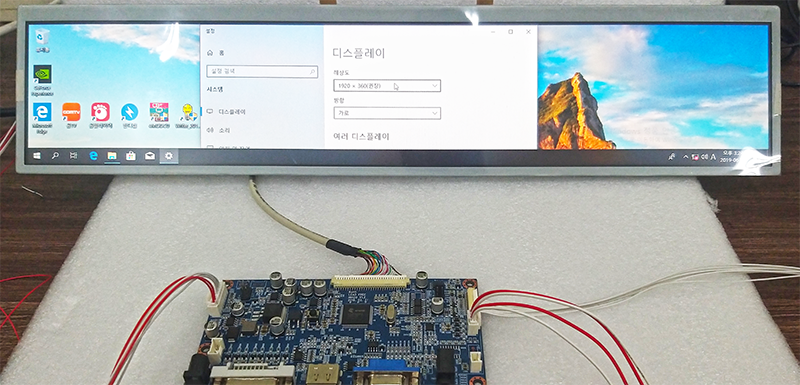

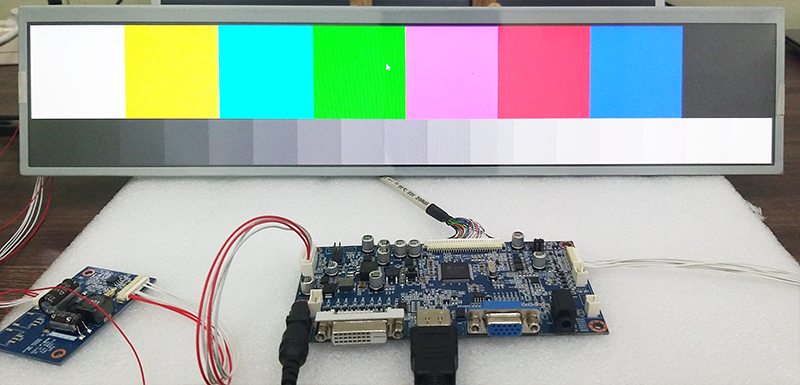

Solutions

패널명 Panel Model	솔루션 Solutions
DV190FBM-NB0	AD BOARD	HN120 V1.2
	OSD BOARD	HI General 5KEY 5mm
	LED DRIVER BOARD	HI-LEDL_V3.0
	LVDS CABLE	30*30*300(General 17)
	OSD CABLE	8*12*300(General 5KEY)
	INVERTER CABLE	8*12*250(DS-1307WK)
	FIRMWARE DOWNLOAD	NOVATEK
